How to configure SMS Server using Clickatell

This guide is designed to help you configure your SMS Server using Clickatell provider.

Step1:

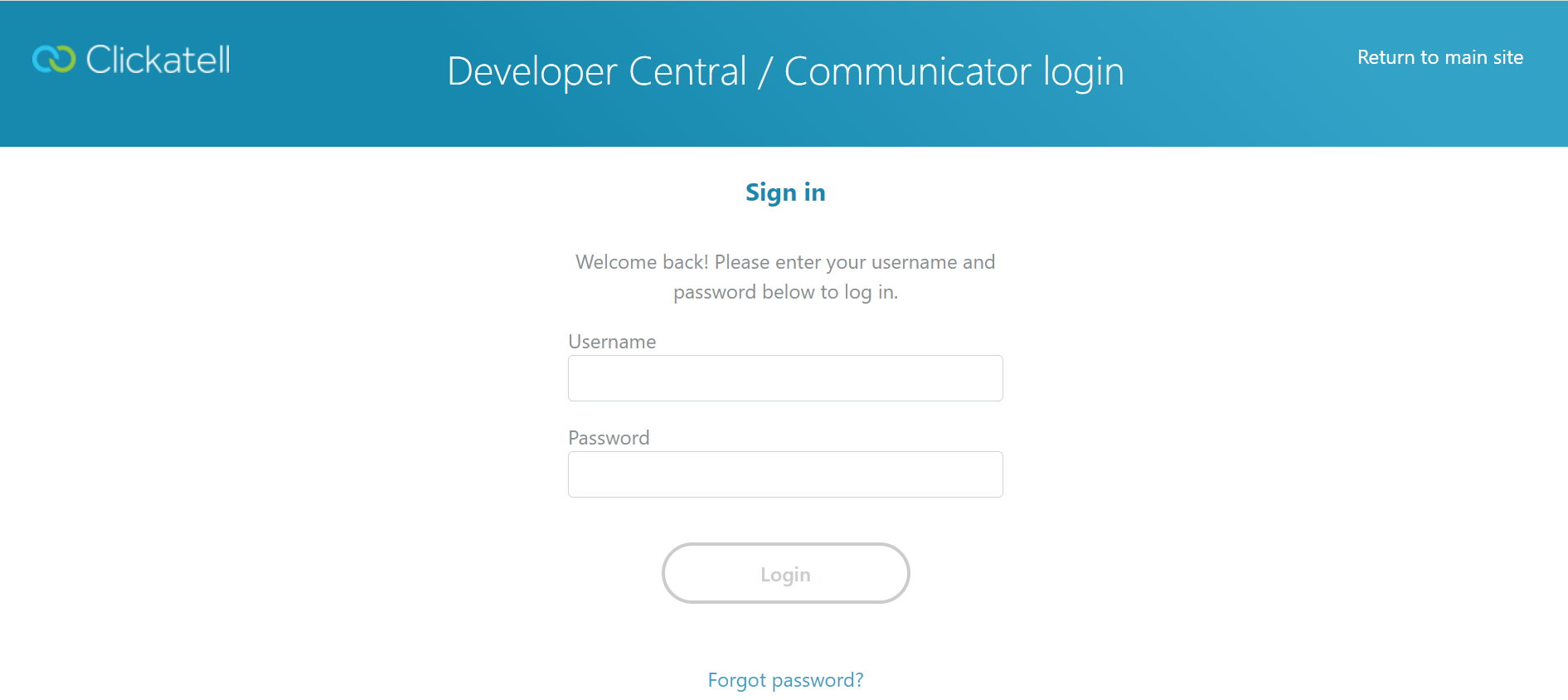

Login to Clickatell Developers‘ Central using your existing credentials at https://central.clickatell.com/

Step 2:

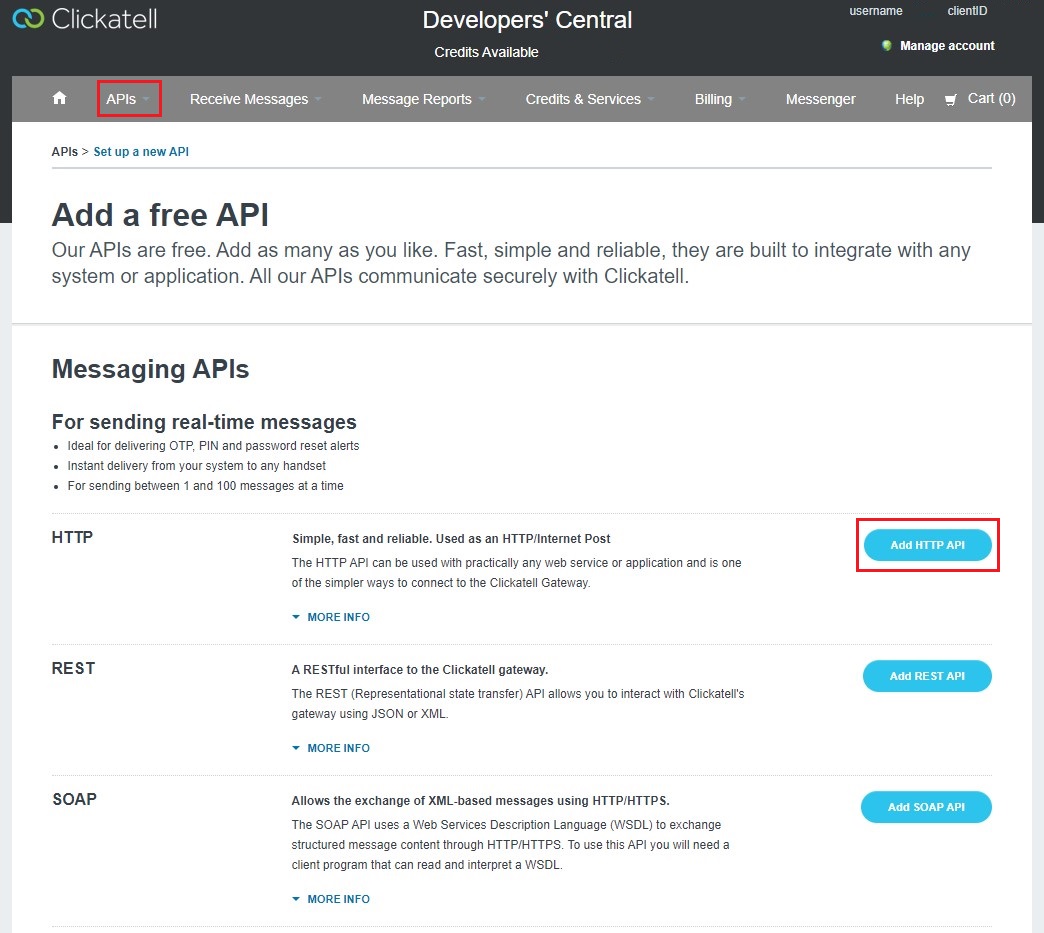

Create a new HTTP API with Add HTTP API button

Step 3:

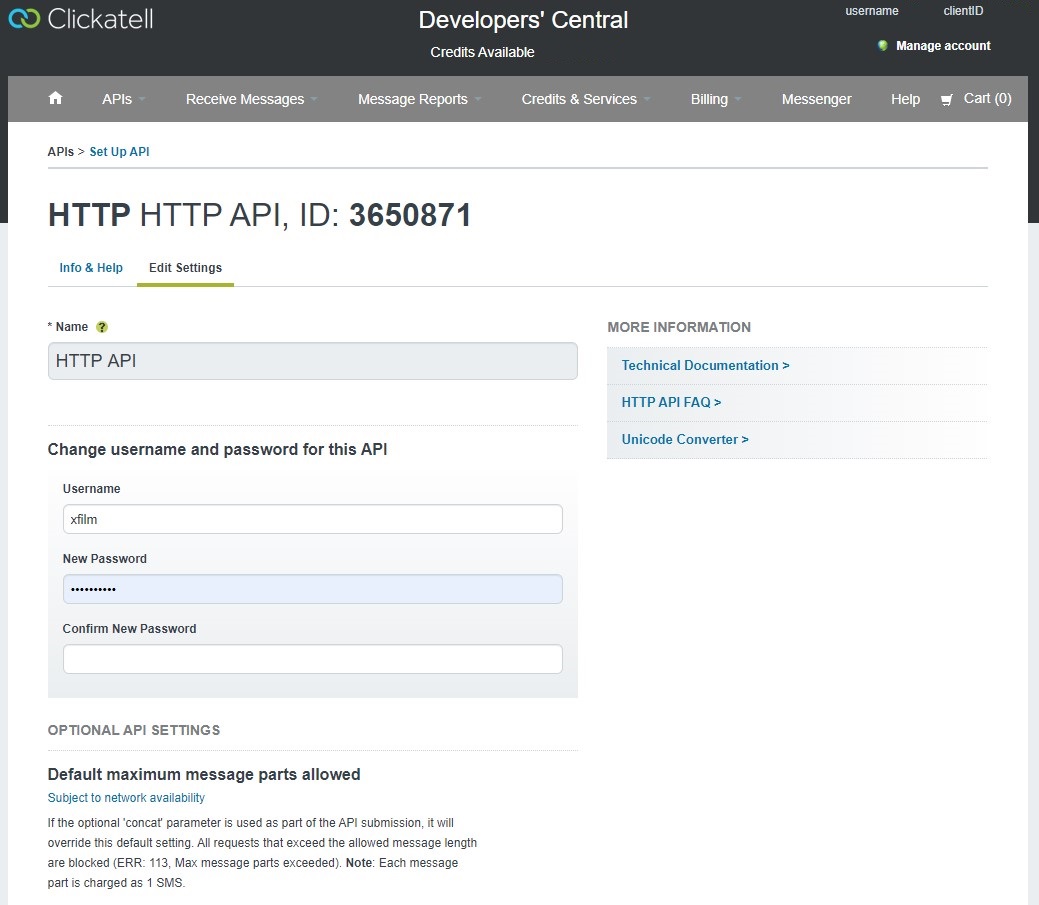

Create a name for you API, set username and password

Step 4:

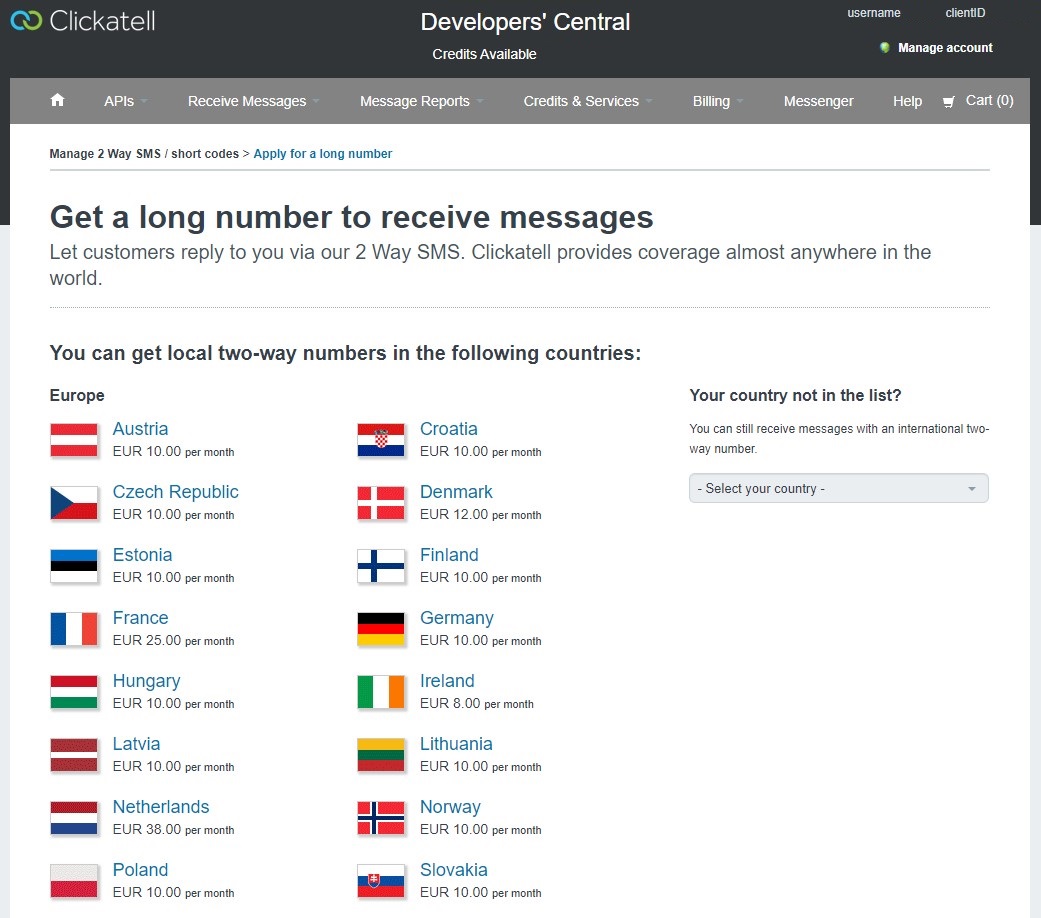

Apply for a long number to manage Two-Way SMS (optional)

Step 5:

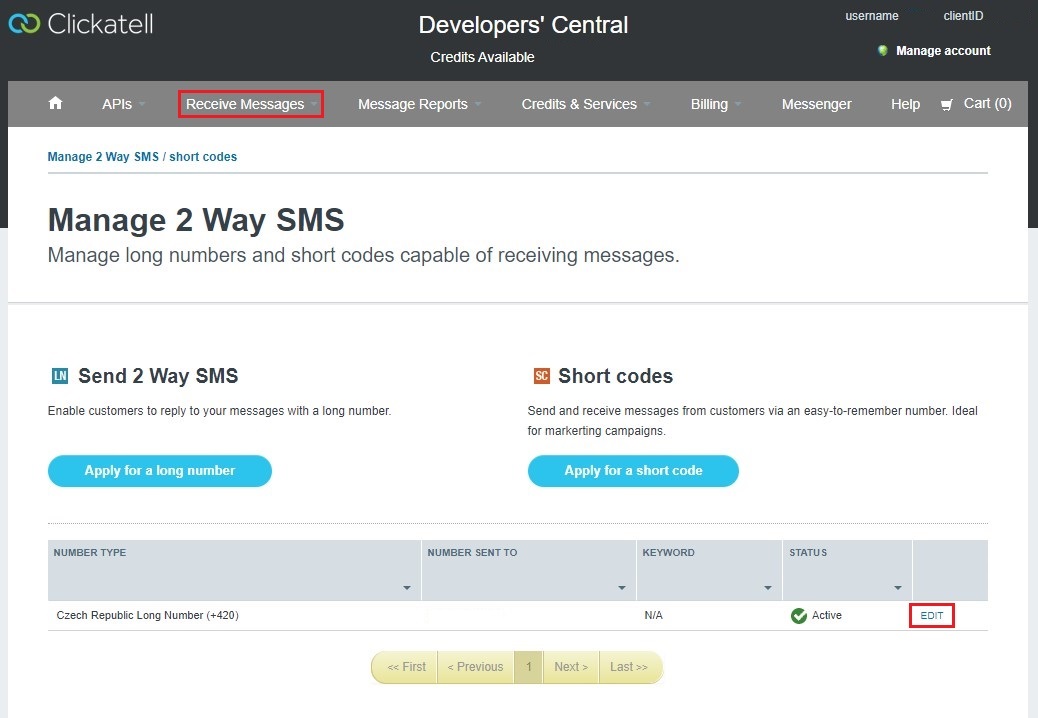

Edit setting of Two-Way SMS (optional)

Step 6:

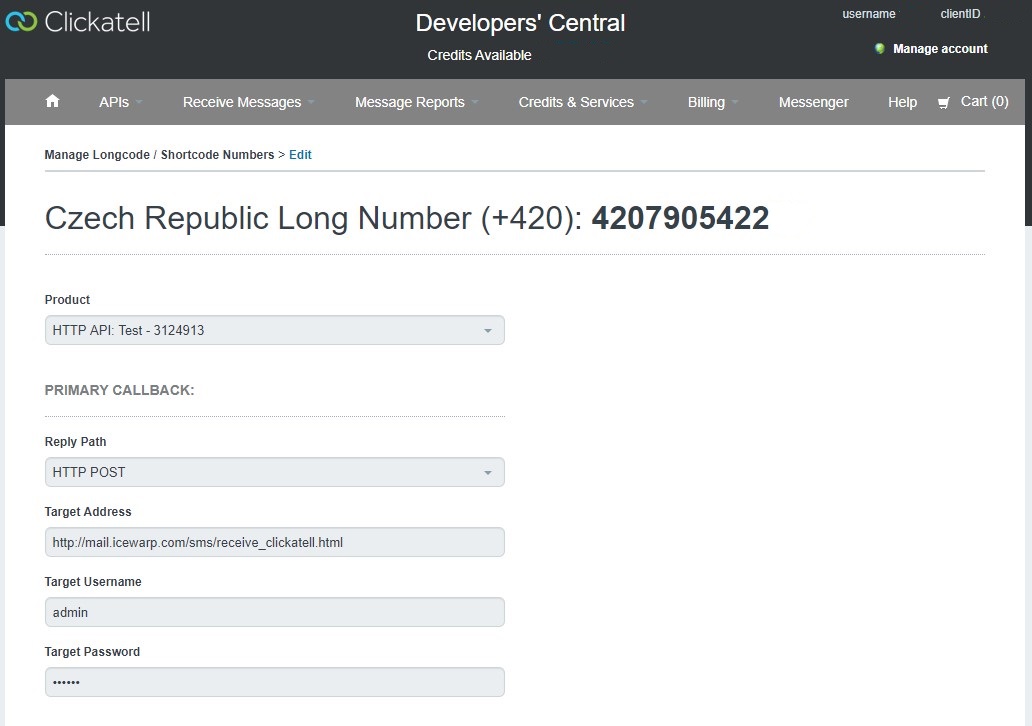

Select your created API and user Reply Path and Target Address examples on the picture

Step 7:

Move to IceWarp remote console now for the SMS server configuration

Navigate to SMS / General and press Add to create a new configuration. Choose a name for ID, select type HTTP Request, template Clickatell HTTP Gateway and copy this link over to Device window:

http://api.clickatell.com/http/sendmsg?user=XXXX&password=YYYY&api_id=ZZZZ&to=%number%%condition;isascii;value=&text=%%condition;isunicode;value=&text=%%condition;isbinary;value=&data=%%data;isascii%%data;hex;isunicode;unicode;value=&unicode=1%%data;hex;isbinary;value=&udh=%%udh;len;hex;isbinary%&concat=%parts%

NOTE: Replace XXXX, YYYY and ZZZZ with your own values (XXXX stands for username, YYYY for password and ZZZZ for API_ID)

For Two-Way messaging use following link:

http://api.clickatell.com/http/sendmsg?user=XXXX&password=YYYY&api_id=ZZZZ&&from=NNNN&mo=1&to=%number%%condition;isascii;value=&text=%%condition;isunicode;value=&text=%%condition;isbinary;value=&data=%%data;isascii%%data;hex;isunicode;unicode;value=&unicode=1%%data;hex;isbinary;value=&udh=%%udh;len;hex;isbinary%&concat=%parts%

NOTE: Replace XXXX, YYYY, ZZZZ and NNNN with your own values (XXXX stands for username, YYYY for password, ZZZZ for API_ID and NNNN for long number)

Finally, set the PIN/Password.

Step 8:

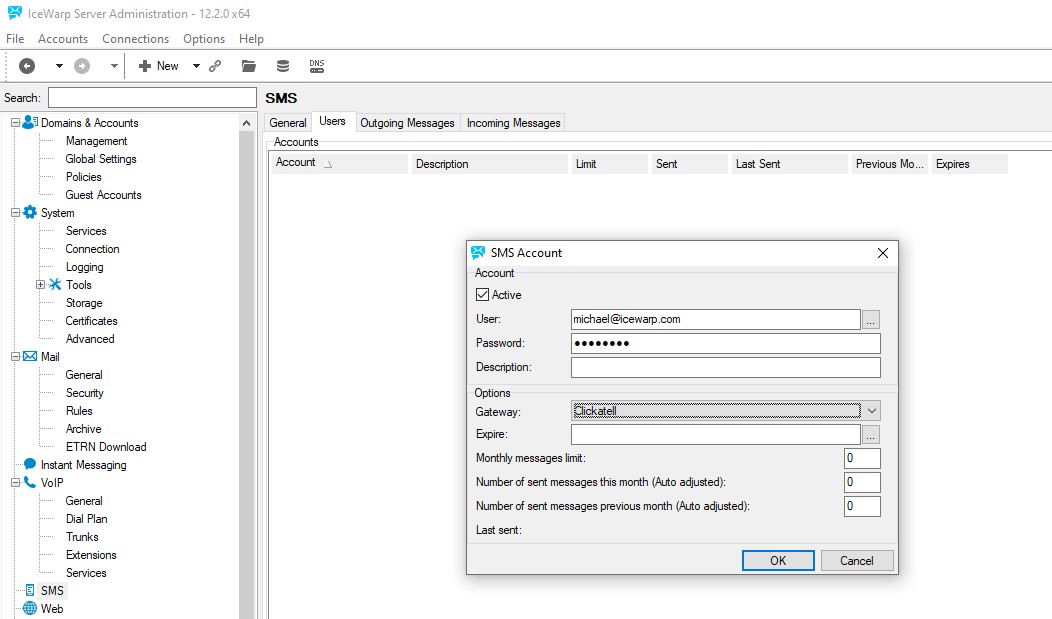

Navigate to SMS / Users and press Add to select users/domains that will be able to send SMS on behalf of IceWarp. Fill in the password and select Gateway from the list.

Step 9:

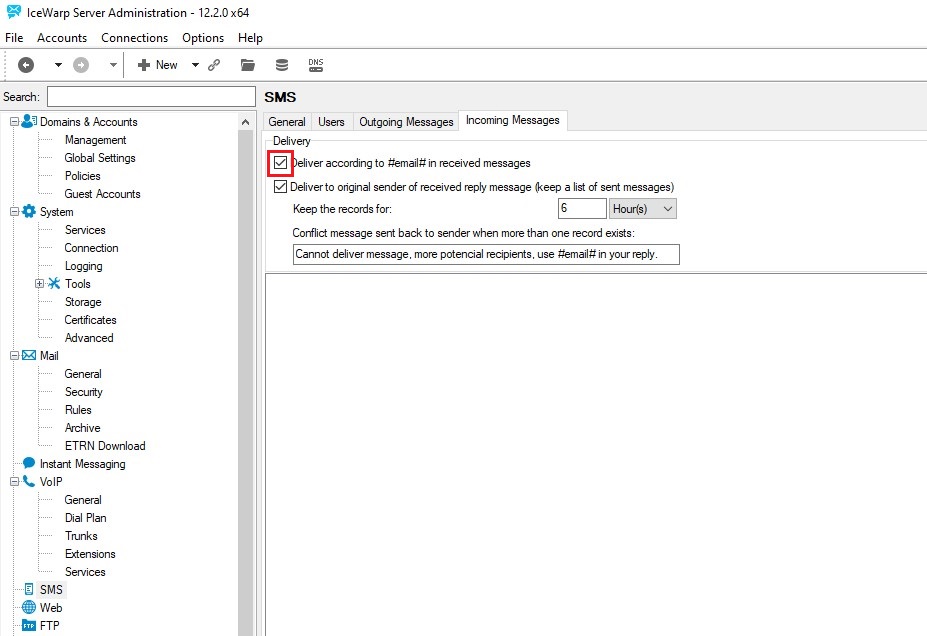

Navigate to SMS / Incoming messages and check the option Deliver according to #email# in received messages (match the values on the picture below)

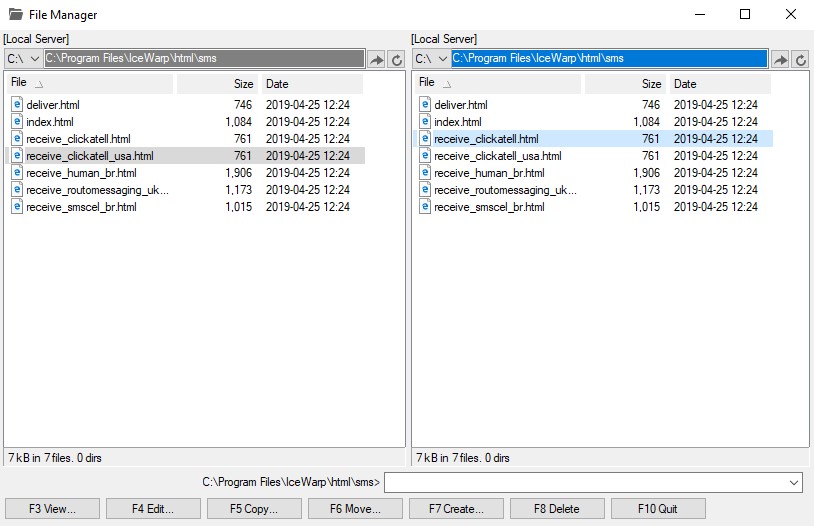

For Two-Way messaging, make a copy of install_dir/html/sms/receive_clickatell_usa.html and name this copy as receive_clickatell.html

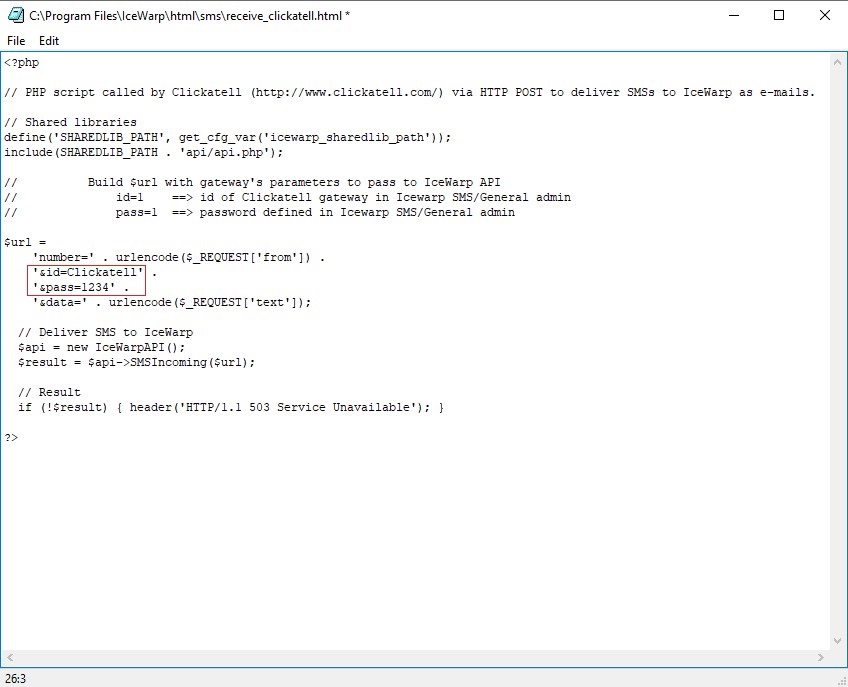

Open the new copy receive_clickatell.html and edit the following rows

1. &id (use the name of your Gateway, in our case Clickatell)
2. &pass (use your created PIN/Password)
3. Save changes

Your configuration is now complete.
